Ligne de coupe simple

The cut to length line is mainly used in the production process of cutting coils of different material thicknesses into specified widths. Generally speaking, as a large-scale coil processing equipment, the cut to length production line is not a small investment in terms of the price of the machine, the area required for factory installation, and the cost of later maintenance.

In order to help customers who do not have particularly high production requirements to reduce investment costs, KINGREAL specially designed this simple cut to length machine. This production line simplifies most of the equipment as much as possible without affecting the basic production functions, and realizes an integrated production structure.

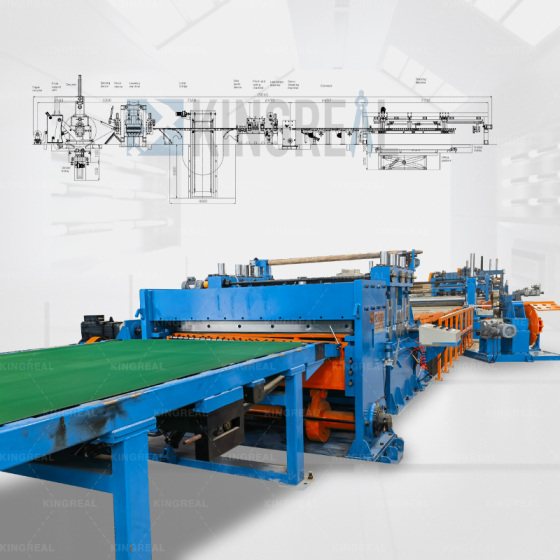

Hydraulic Decoiler -- Feeding Roller -- Leveling Machine -- Shearing Machine -- Convey -- Automatic Stack

◎Raw Material: Metal,Steel,Stainless and so on

◎Coil Thickness: 0.3-2mm

◎Coil Width: 800mm

◎Coil Weight: 10T

◎Roller Material: GCr15

◎Blade Material: GCr15

1. Decoiler System The coil slitting line decoiler unit adopts hydraulic collapsible roller, no harm to the bottom layer of material.  It can be stretch uncoiling or manual unloading, effectively prevent the material from deflection and scratching.
	2. Cut To Length Capability Cut to length line uses a sheet-shaped fixed knife and a reciprocating moving knife. The fixed knife usually has a warped portion to form a cutting edge, while the moving knife completes the shearing action by moving forward and backward or up and down. The gap between the upper and lower blades can be precisely controlled by manually adjusting the eccentric sleeve or gear rack mechanism to adapt to different thickness plates.
3. Full Automation Stacking KINGREAL designs automatic stacking machine configuration the cut-to-length production line to realize automatic stacking production.

The biggest advantage of this machine is that it can reduce investment costs and meet the needs of low-budget customers.On the one hand, the production line simplifies a large part of the equipment and reduces the production cost of the machine; On the other hand, the integrated production line features can realize the effect of putting into production without building a foundation.

1/How long do cut to length machine blades last?

The lifespan of cut to length machine blades depends on the material being cut and the frequency of use. KINGREAL also offers custom alloy steel blades to extend service life.

2/Which materials are suitable for cut to length lines?

KNGREAL cut to length machines are primarily suitable for steel, stainless steel, carbon steel, aluminum, copper, and other metal materials.

3/What if the cut to length machine breaks down?

KINGREAL cut to length machines are of very reliable quality. If any parts are damaged, KINGREAL will provide you with replacement parts.

4/Can you make the cut to length machine according to my design or photo type?

Yes. KINGREAL has an experienced engineers to work out the most suitable design and production plan for the cut to length machine.

5/What kind of tolerances can be achieved?

Tolerance of length: L=2M≤±0.3MM(2.0MM), Diagonal tolerance: L=2M≤±0.5MM(2.0MM), depending on the cut to length machine's structure and control system.

KINGREAL has its own production plant, which includes a frame casting shop, a CNC control shop, a parts machining shop and an assembly shop. In order to ensure the production quality of the cut to length machines, the whole line will be tested and adjusted in the factory. KINGREAL welcomes all customers to visit our factory.
